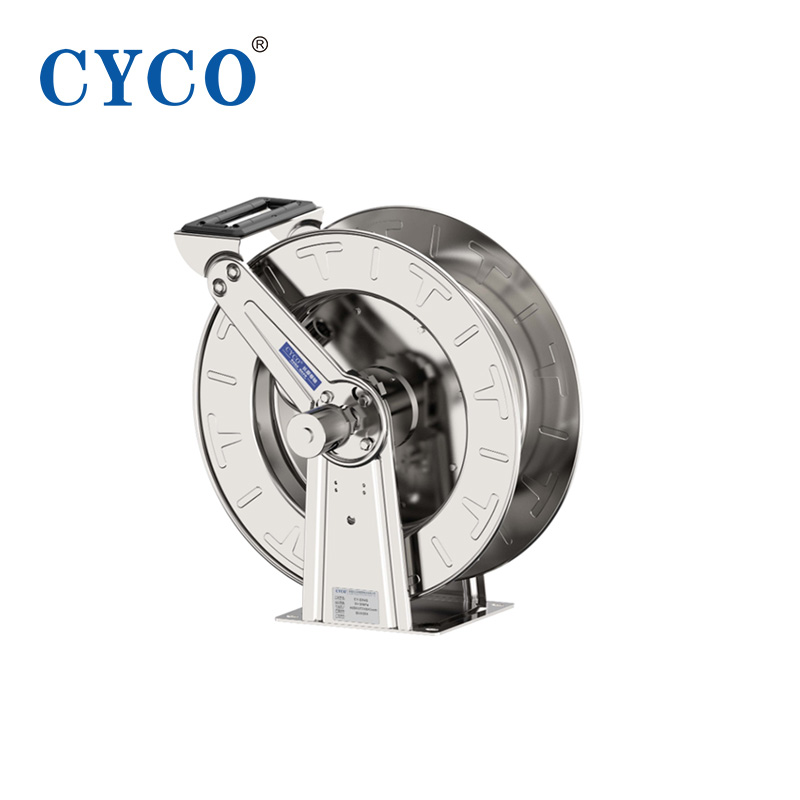

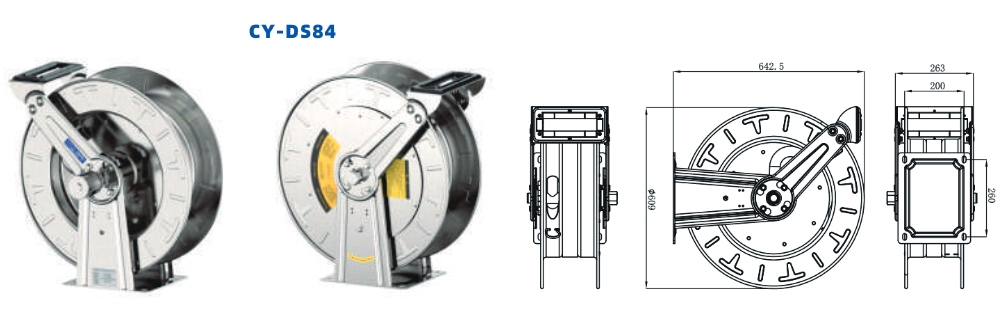

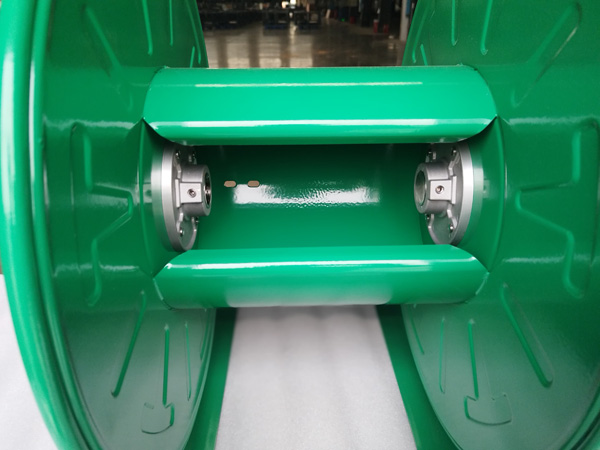

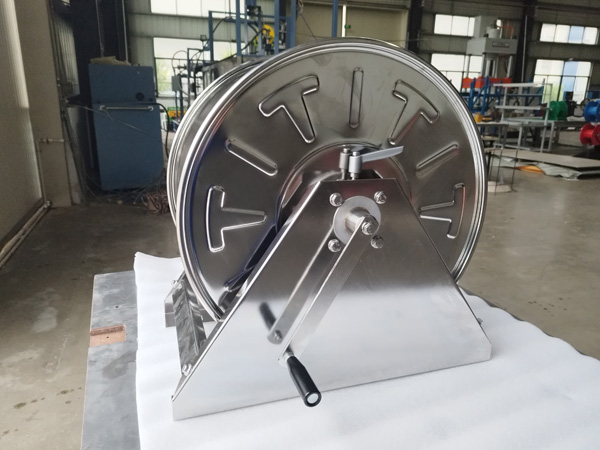

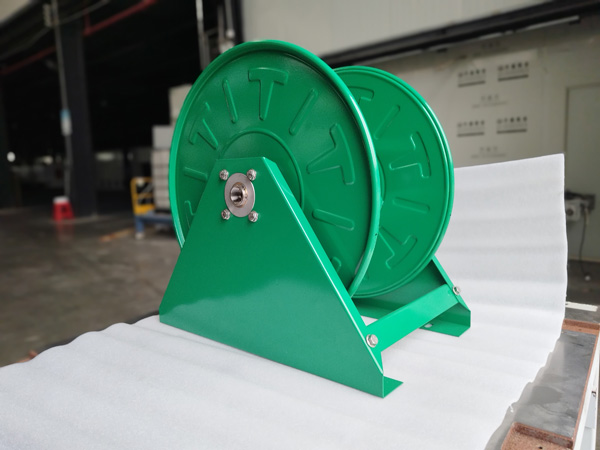

Stainless Steel Spring Driven Hose Reel CY-DS84
Designed for industry, buildings, workshops, public institution service centers, etc.
Easy to install on walls, ceilings, floors, etc.
Adjustable Cushion Stop: Allows any desired length of rope to be held on the outside of the reel.
Adjustable Guide Arms: Multiple guide arm positions for easy field adjustment.
Enclosed Drive Spring: Drive mechanism is enclosed to protect against environmental influences.
Long Life Drive Springs: Clutch type reel spool virtually eliminates the possibility of spring damage due to reverse spool winding.
Corrosion and dirt resistance: Manufactured from 304 stainless steel stampings with electrochemical surface treatment.
| Model (without hose) |
Weight (kg) |
Maximum pressure (bar) |
Hose inner diameter (mm) |
Hose outer diameter (mm) |
Hose outlet NPT internal thread |
Reel Import NPT internal thread |
Hose length (m) |
Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Long | Width | High | ||||||||
| Low and medium pressure reels max. 99°C (high pressure reels max. 65°C) | ||||||||||
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8 | 3/8 | 15 | 492 | 206 | 521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8 | 3/8 | 21 | 492 | 206 | 521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2 | 1/2 | 15 | 492 | 206 | 521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 492 | 206 | 521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8 | 3/8 | 23 | 479 | 226 | 498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 479 | 226 | 498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4 | 3/4 | 12 | 479 | 226 | 498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 25 | 479 | 291 | 498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 30 | 479 | 291 | 498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4 | 3/4 | 20 | 479 | 291 | 498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8 | 3/8 | 11 | 356 | 156 | 365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2 | 1/2 | 15 | 502 | 178 | 514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2 | 1/2 | 30 | 667 | 305 | 670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4 | 3/4 | 23 | 667 | 305 | 670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1 | 1 | 15 | 667 | 305 | 670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2 | 1/2 | 23 | 667 | 305 | 670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4 | 3/4 | 15 | 667 | 305 | 670 |
| Model | Total Weight | Maximum pressure | Reel Exit | Reel Import | Inner Diameter | 6 | 10 | 13 | 19 | 25 | Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Without Hose) | kg | bar | NPT Internal Thread | NPT Internal Thread | Outer Diameter | 14 | 18 | 22 | 30 | 38 | Length | Width | Height |
| Manual medium pressure reel, the highest temperature is 99℃ | |||||||||||||
| HS18-000 | 16 | 35 | 1/2 | 1/2 | Hose length | 130 | 91 | 61 | — | — | 508 | 464 | 483 |
| HS28-000 | 16 | 35 | 1/2 | 1/2 | 191 | 137 | 91 | — | — | 508 | 616 | 483 | |
| HS19-000 | 17 | 35 | 3/4 | 3/4 | 130 | 91 | 61 | 23 | — | 508 | 464 | 483 | |
| HS29-000 | 16 | 35 | 3/4 | 3/4 | 191 | 137 | 91 | 38 | — | 508 | 616 | 483 | |
| HS37-000 L | 21 | 35 | 1(M) | 1 | — | — | — | — | 30 | 604 | 584 | 626 | |
| This series of products does not include a hose. If a hose is required, please consult CYCO. | |||||||||||||
